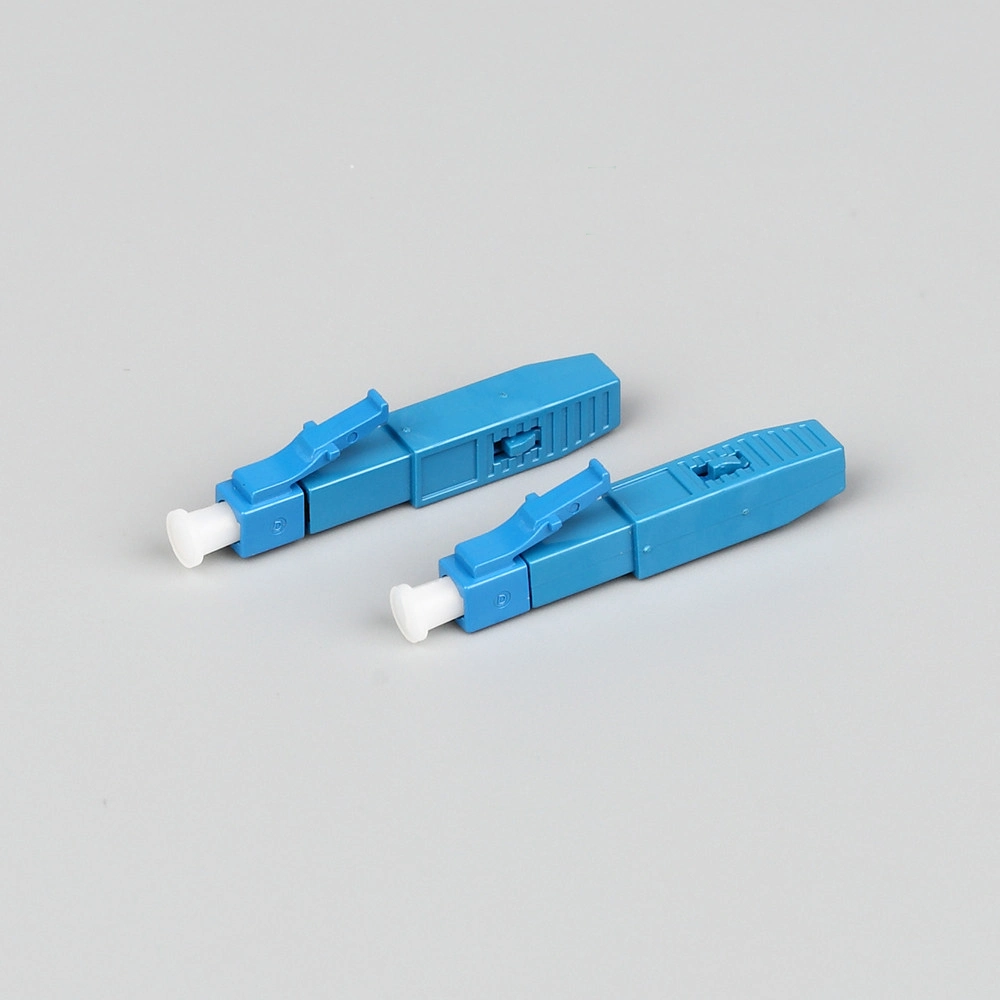

LC/Upc Quick Connector LC Quick Connector Field Assembly Connector

the Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical sp

Featured Products

LC/Upc Quick Connector LC Fast Connector Field Assembly Connector

the Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.he Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC  and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.
Features:
This Fast Connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel.
Product nameFiber optic Fast ConnectorConnecterLC/UPC
Insertion Loss≤0.3dBReflection Loss≥50dB
Inner Box Size200*160*90mmInner Box Quantity200pcs
Mother Carton480*350*240mm/10.5kgMother Carton Quantity2000pcs
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector


LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector
LC/Upc Quick Connector LC Fast Connector Field Assembly Connector


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
